製品詳細
起源の場所: 中国
ブランド名: SDLIFT
証明: CE, ISO9001, SGS
モデル番号: SJGL0.25-6
支払いと送料の条件
最小注文数量: 1ユニット
価格: US3880- USD7800 / UNIT
パッケージの詳細: アイアンケースかヌード
受渡し時間: 20営業日
供給の能力: 1年ごとの1200units
応用: |
障害者 階段 エレベーター 車椅子 プラットフォーム エレベーター 家用 |
高さを持ち上げる: |
6m |
容量: |
250kg |
持ち上げるパワー: |
220v/50hz/1ph/2.2kw |
ガラスのドア: |
2pcs ガラスのドア |
証明書: |
CE、ISO9001 |
応用: |
障害者 階段 エレベーター 車椅子 プラットフォーム エレベーター 家用 |
高さを持ち上げる: |
6m |
容量: |
250kg |
持ち上げるパワー: |
220v/50hz/1ph/2.2kw |
ガラスのドア: |
2pcs ガラスのドア |
証明書: |
CE、ISO9001 |

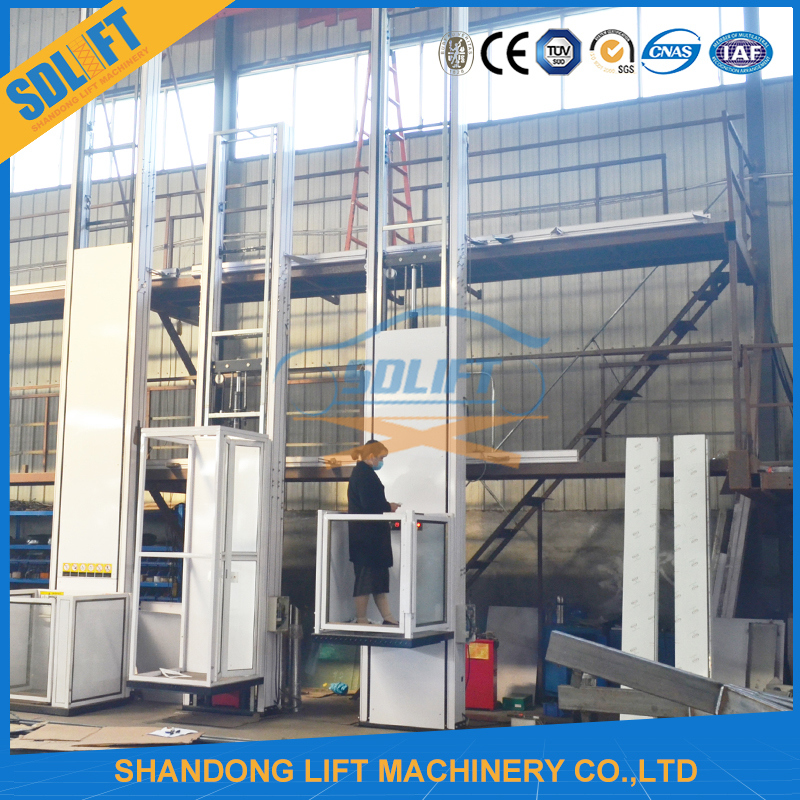

1-9m Personal Disabled Elevator Wheelchair Platform Lift For Home:
It is a device to transport wheelchair or people from one floor to another. It allows user to move freely within a multi-floored building and applicable to hotels , households,shopping malls and hospitals etc.
| Main Parts | Small Home Lift |
| Floor control column | It is fixed on the ground and upper floor for the user easy operation with “UP”, “Down” and E-Stop button |
| Control Panel | Apart from “UP”, “Down” and E-Stop button on it, there is still with keys, when no use, we can lock the lift |
| Remote control | User can control the platform by remote controls |
| Drive tower | The platform will go up by climing the drive tower, it contains pump station, hydraulic cylinder etc. |
| Handrail | When the users enter into the platform, they can hold on it for safety when lifting up and down |
| Automatic ramp | When the platform off the ground, it will fold up automatically to ensure the users safety |
| Safety Device | Small Home Lift |
| Safety Interlock | Lock the platform when the vertical platform lift encounters an emergency |
| Safety Sensor | The operation must be stopped immediately the safety edge meets obstacles during operation |
| Emergency lowering | The platform can be lowered by opening hydraulic valve manually or rolling screw rod |
| Auto-flap | The small ramp will turn up while lifting |
|
Aluminum with tempered glass enclosure can be added per actual need.
|
|
|
Mechanical platform lock It is a double safe design to protect people on platform |
|
|
Emergency down button The platform can be lowered by manual down button in case of power failure |
|
|
Safety sensor on the platform bottom The lift will be stopped at once if it touches any obstacles when going down, especially to protect the children if he enter accidentally. |
|
|
Electromagnetic lock of the platform door Interlocking: The lift won’t work if the door is open, it can only rise when the door is completely closed. Electromagnetic lock: The door won’t be opened during the rising process. |
|
|
Three calling and control type (platform control, remote control, post control) You can control the wheelchair lift at any place. |
|
Model list:
| MODEL | Lifting height | Platform size | Load capacity | Total dimention | Self weight |
| SJGL0.25-1 | 1000mm | 1430*900mm | 250kg | 1900*1430*1200mm | 350kg |
| SJGL0.25-2 | 2000mm | 1430*900mm | 250kg | 2900*1430*1200mm | 550kg |
| SJGL0.25-3 | 3000mm | 1430*900mm | 250kg | 3900*1430*1200mm | 780kg |
| SJGL0.25-3.5 | 3500mm | 1430*900mm | 250kg | 4400*1430*1200mm | 850kg |
| SJGL0.25-4 | 4000mm | 1430*900mm | 250kg | 4900*1430*1200mm | 880kg |
| SJGL0.25-4.5 | 4500mm | 1430*900mm | 250kg | 5400*1430*1200mm | 950kg |
| SJGL0.25-5 | 5000mm | 1430*900mm | 250kg | 5900*1430*1200mm | 1000kg |
| SJGL0.25-5.5 | 5500mm | 1430*900mm | 250kg | 6400*1430*1200mm | 1050kg |
| SJGL0.25-6 | 6000mm | 1430*900mm | 250kg | 6900*1430*1200mm | 1100kg |
